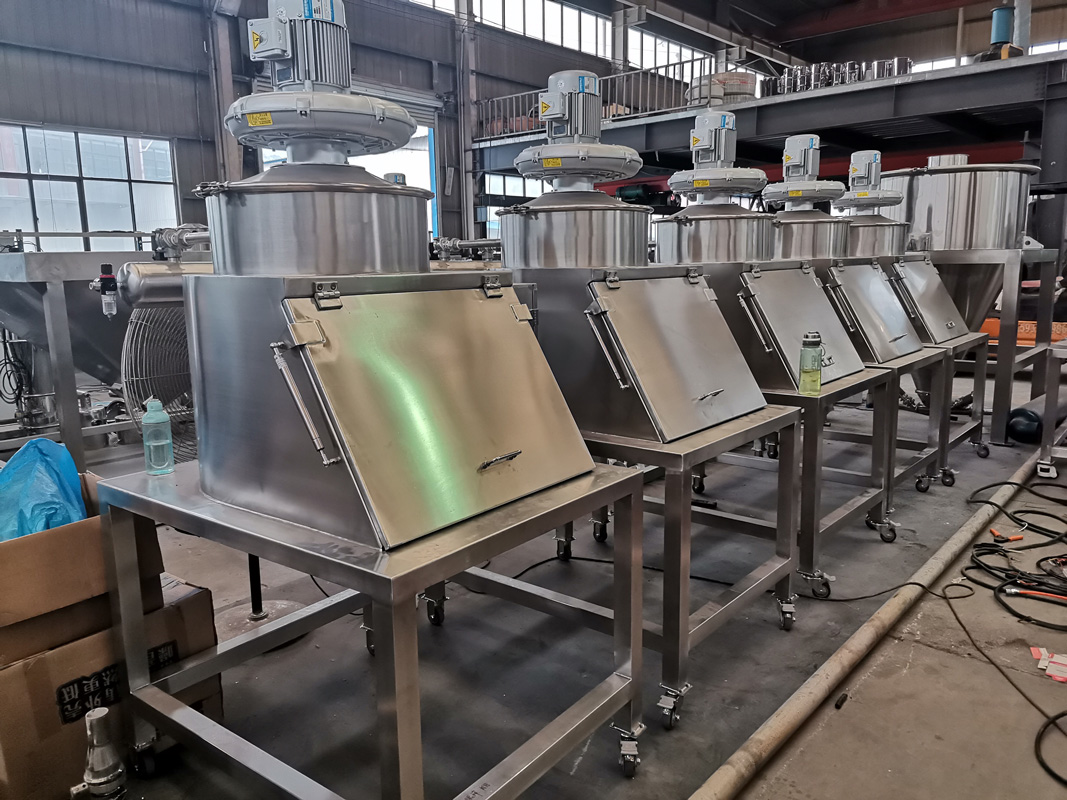

Dust Free Bag Dump Station
Bag Dump Station are used for eliminating dust pollution when dumping powder,pellets,particles,flakes,fiber,or bulk solids from boxes,drums,bags,etc.
Model: ST-800, ST-1000, ST-1200
Material: Stainless Steel S304
Surface Treatment: Mirror Polishing, Sand Blasting
Application for: Plastic Bags or paper bags from 20kgs-100kgs
Supporting Equipment: Screw Conveyor, Vacuum Conveyor
Bag Dump Station are used for eliminating dust pollution when dumping powder,pellets,particles,flakes,fiber,or bulk solids from boxes,drums,bags,etc. It is one kind of middle transfer equipment that uses negative pressure to collect dust while dumping. The whole system consists of vibrator (optional),conveyor, platform,filters,pulse jet cleaning system and blower, Due to the function of dust collector, it can prevent powder dust flying everywhere and can protect the environment effectively. Further more, a vibrating screen can be installed in the dust-free feeding station to effectively remove large lumps or impurities in the materials to ensure the qualified materials go the next step.
Negative pressure dust extraction
No dust, environment protection
Controlling panel, easy operation
|Model||Width||Fan Power||Air flow（m3/h）||Air pressure (Pa)|
